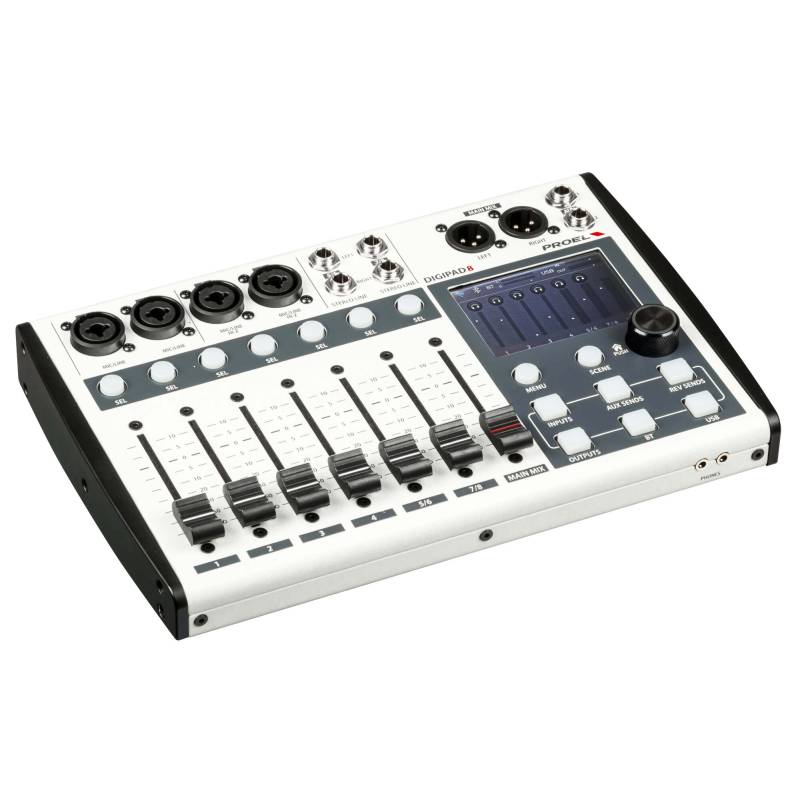

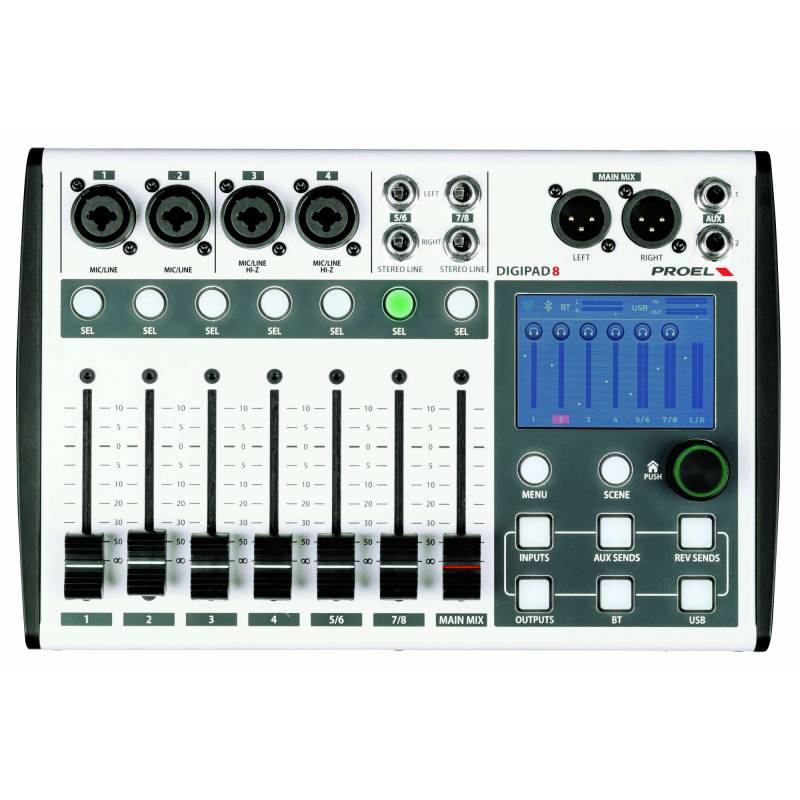

Proel Digipad 8 Digital-Mixer

Compact stand-alone or App-controlled digital Mixer with 7 Motorized faders. 4 Combo MIC/LINE inputs+2 STEREO LINE inputs. BLUETOOTH and 48KHz USB Audio interface. 2 PRE-POST Aux sends + 1 fx Send. Touch Screen display . Android or iOS app

• Modell: DIGIPAD8
• Gewicht: 2.20Kg
• Abmessungen des Produkts: 23.00×39.00×8.00 cm
• Master Carton: 8
• Abmessungen des Umkartons: 48x40x35 cm
• EAN: 8032496928744
• DIGIPAD8 – Power Meets PortabilityStep into the future of mixing with DIGIPAD8, the compact digital console that redefines what’s possible in its class. Designed by Proel to deliver professional performance in a portable format, DIGIPAD8 combines cutting-edge digital technology with effortless usability — the ideal companion for musicians, sound engineers, and creators who demand both power and flexibility.

  Mixing, Made Effortless

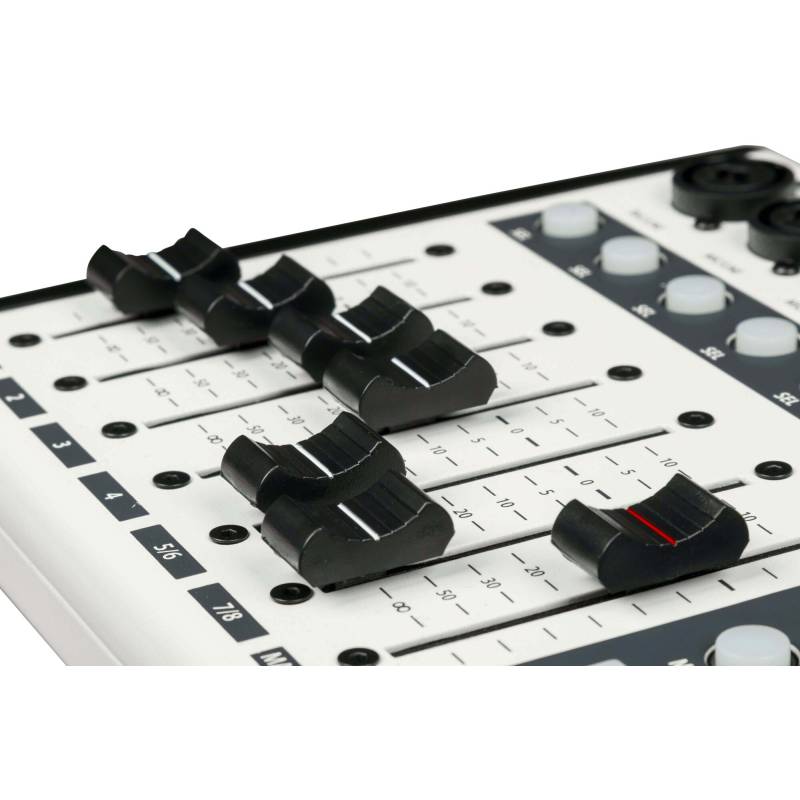

  Take full control of your sound with 7 motorized faders that respond with speed and precision, giving you instant access to saved scenes and allowing seamless transitions even in the most challenging live situations. The large touchscreen display puts every parameter at your fingertips, offering an intuitive workflow that adapts to your style.

  Connected to Your World

  From microphones and instruments to playback devices, DIGIPAD 8 is ready for anything thanks to its combo MIC/LINE and stereo inputs. With two independent AUX sends and a dedicated FX send with Studio grade Digital Reverb, it adapts easily to any setup, whether on stage, in the studio, or in fixed installations.

  For today’s hybrid world of performance and streaming, the 48 kHz USB audio interface ensures pristine recording and playback, while the dedicated Bluetooth channel lets you stream music wirelessly with a single touch.

  Total Freedom, Anywhere

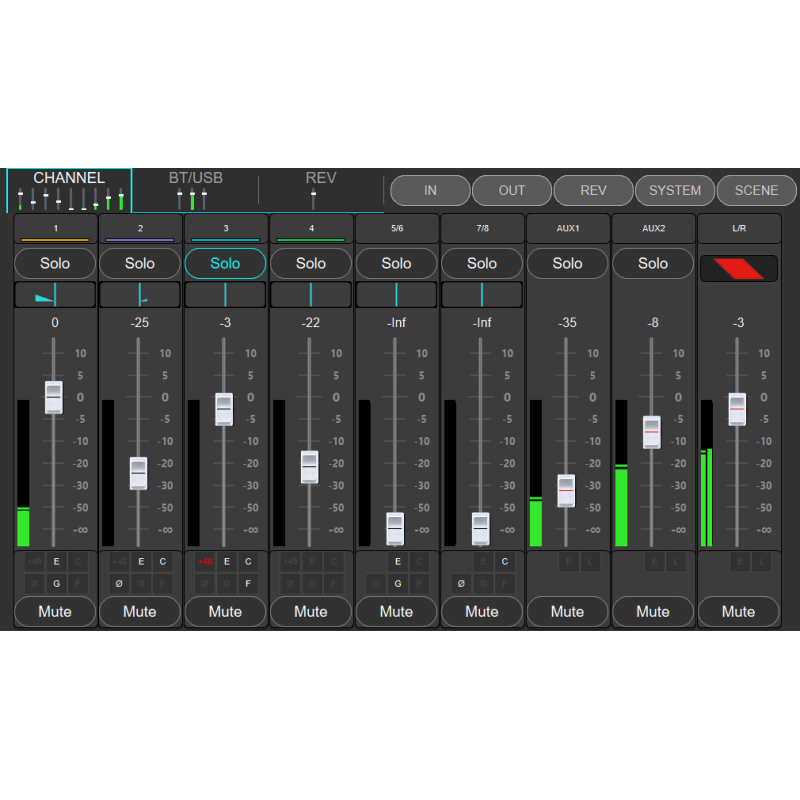

  Use DIGIPAD8 as a powerful stand-alone console or take full control from your smartphone, tablet or PC with the dedicated iOS, Android, MacOS and Windows app, thanks to the built-in Wi-Fi interface. Save and recall your favorite configurations in seconds, and enjoy a workflow that’s as flexible as your creativity.

  Your Sound, Your Way

  Compact yet powerful, DIGIPAD8 brings together professional-grade features, intuitive control, and complete portability in one sleek design. Whether you’re performing live, recording in the studio, or running an installation, DIGIPAD8 gives you the freedom to mix with confidence — anytime, anywhere.

  DIGIPAD8 – The smart way to mix.

• INPUT CHANNELS
  Mic/Line Input 1-2	sensitivity	from 0 to -45 dB	Balanced XLR-F / Balanced JACK
  impedance	10 kΩ
  Mic/Line Input 3-4	sensitivity	from 0 to -45 dB	Balanced XLR-F
  impedance	10 kΩ
  Hi-Z input 3-4	sensitivity	from 0 to -35 dB	Unbalanced JACK
  impedance	1 MΩ
  Stereo Line Input 5-8	sensitivity	from 0 to -35 dB	Balanced JACK
  impedance	10 kΩ

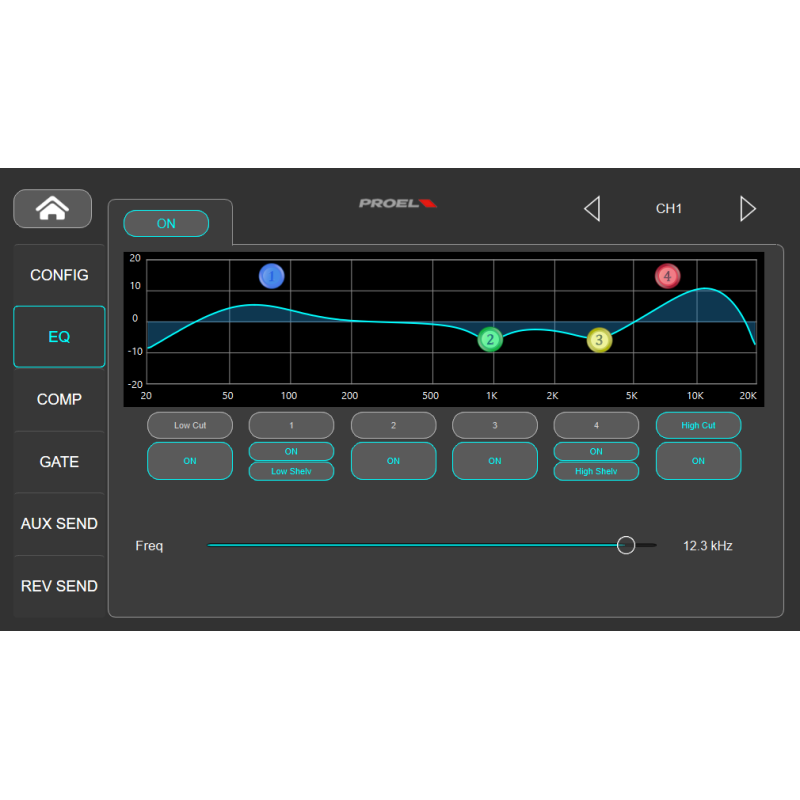

  EQ		4-band full parametric EQ with LOW-CUT and HI-CUT
  Compressor		Threshold/Ratio/Gain/Attack/Release

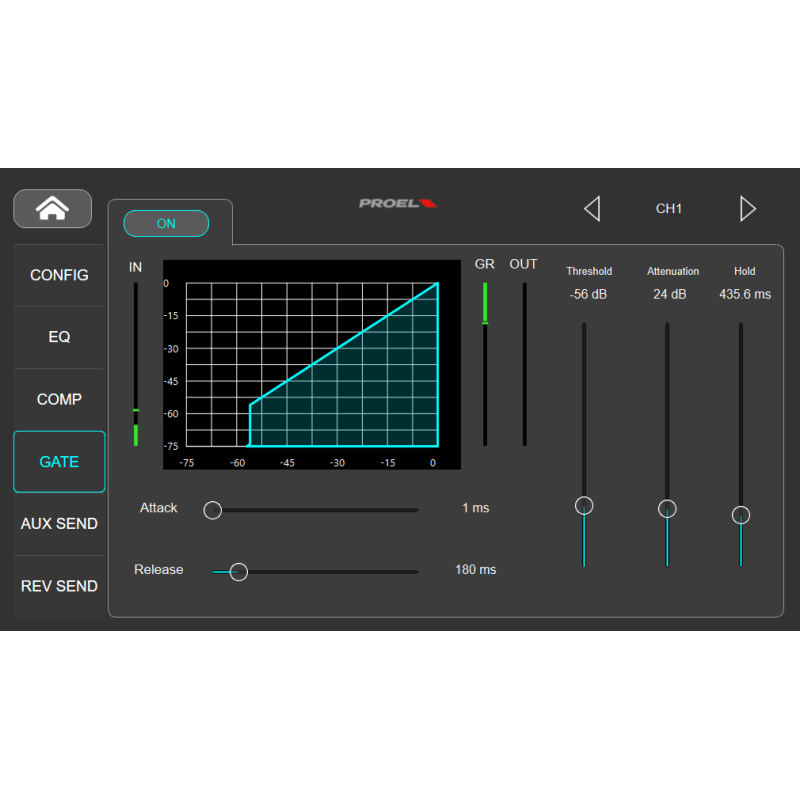

  Gate		Threshold/Attenuation/Hold/Attack/Release
  MASTER SECTION
  MAIN MIX	nom. out level	0 dBu	Balanced XLR-M
  MAIN MIX EQ		4-band full parametric EQ with LOW-CUT and Hi-CUT
  MAIN MIX Limiter		Threshold/Attack/Release
  AUX 1-2 output	nom. out level	0 dBu	Balanced  JACK
  AUX 1-2 EQ		4-band full parametric EQ with LOW-CUT and Hi-CUT
  AUX 1-2 Limiter		Threshold/Attack/Release
  HEADPHONES	min. impedance	32 Ω	2 x Stereo MINIJACK
  max. out level	135 mW
  REVERB		Reverb Size
  USB / BLUETOOTH INTERFACE
  Bluetooth		Version 5.2, Audio Streaming
  PC USB interface		USB 2.0 / 3.0	Type C
  A/D and D/A converters		24 bit – 48 KHz
  USER INTERFACE

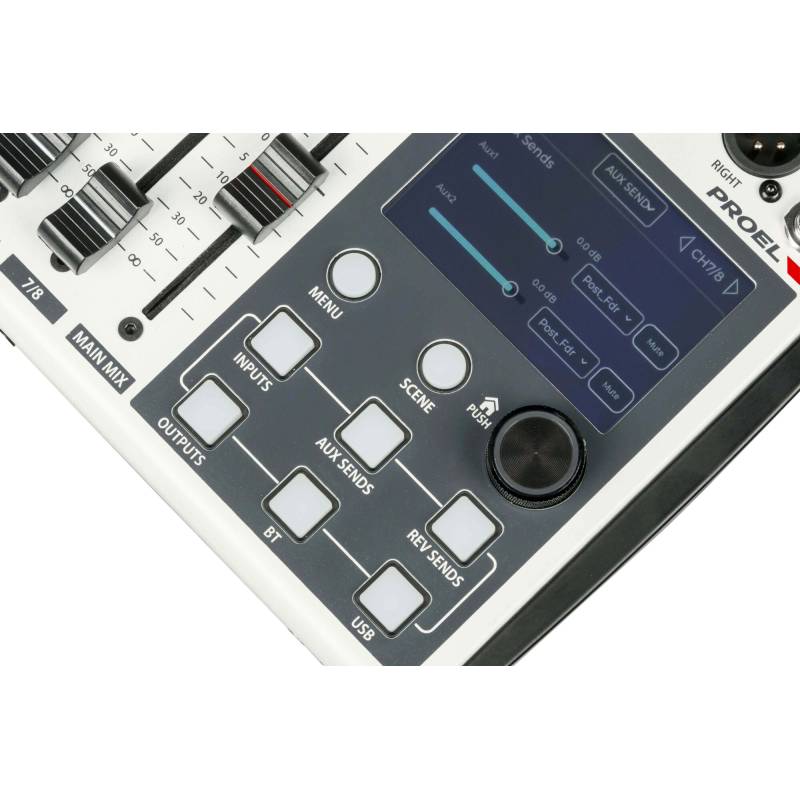

  Onboard controls		Seven 60mm motor-faders 3″ Capacitive Touch Display Seven DIRECT SELECTION keys Eight direct access keys Rotary dial
  Remote control		Integrated WI-FI Interface Windows App MacOS Android App iOS App
  GENERAL SPECIFICATIONS
  Maximum level	all outputs	+18 dBu
  Crosstalk	meas. at 1 KHz	-105 dB
  HUM & Noise	unweighted	-85 dBu	A weighted  -89 dBu
  THD + Noise	at +4dB, 1kHz	> 0.002%
  Dimensions (WxHxD)		280 x 187 x 53.5 mm
  Weight		2.10 kg
  POWER REQUIREMENTS

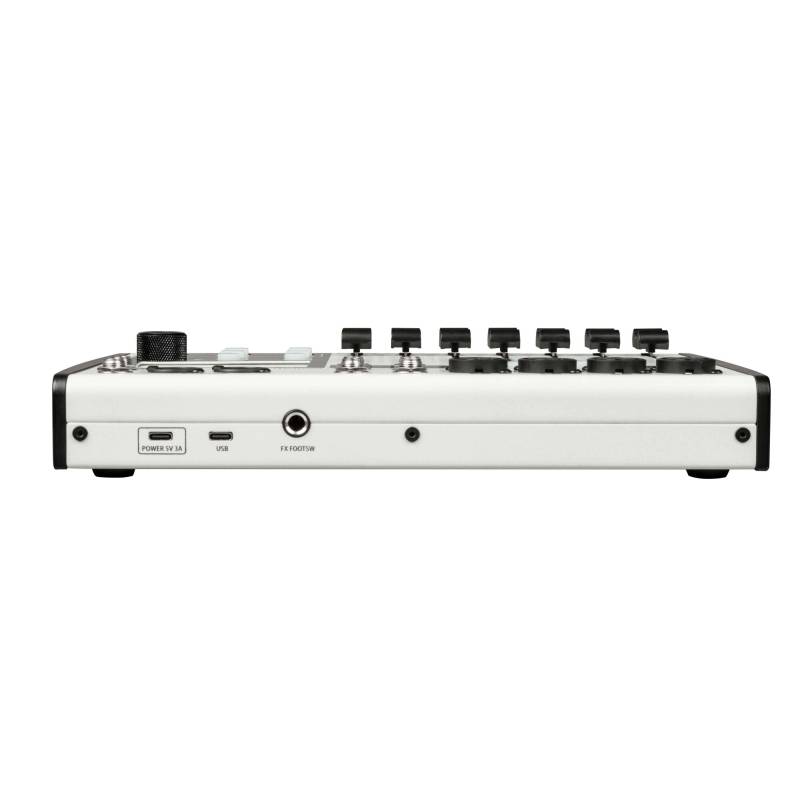

  Supply		5V / 3A	USB Type C
  Mains Supply Voltage		100-240 VAC (±10%) 50 / 60 Hz USB power adapter available with EU / US / UK plug
  Consumption		15 W

  Hersteller/Vertrieb: Proel Italien
